IRKD70-16 40mm Thyristor Controlled Rectifier

Jiangsu Gold Electrical Control Technology Co., Ltd.

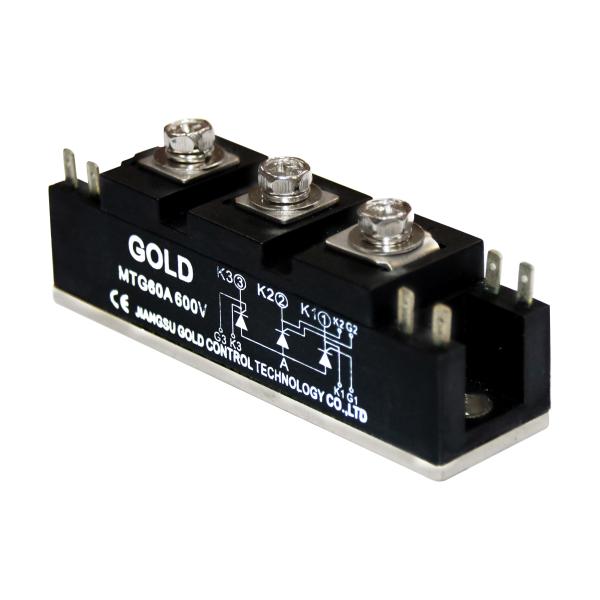

IRKD70-16 40mm Thyristor Controlled Rectifier

Model Number : MDS MTC、MT/DC、MTK、MT/DK、 MTA、MTX、MT/DX

Brand Name : Gold

Name : Diode Thyristor Rectifier

Certificate : ISO9001:2000,EU, UL,CUL,RoHS

Suitable for types : MDS MTC、MT/DC、MTK、MT/DK、 MTA、MTX、MT/DX

IF(AV) : 20A ~ 500A or custom made

20A ~ 500A : 1600V or custom made

Tjm : 150C or custom made

VSIO : ≥2.5KV(RMIS) or custom made

Type : Rectifier Bridges Module

Contact Now

Diode Thyristor Rectifier





Description of  Diode Thyristor Rectifier



What is a thyristor?
The thyristor may be considered a rather an unusual form of electronics component because it consists of four layers of differently doped silicon rather than the three layers of the conventional bipolar transistors.

Whereas conventional bipolar transistors may have a p-n-p or n-p-n structure with the electrodes named collector, base and emitter, the thyristor has a p-n-p-n structure with the outer layers with their electrodes referred to as the anode (n-type) and the cathode (p-type). The control terminal of the SCR is named the gate and it is connected to the p-type layer that adjoins the cathode layer.

Basic structure of a thyristor or SCR - silicon controlled rectifier
Basic structure of a thyristor / SCR
Thyristors are usually manufactured from silicon, although, in theory other types of semiconductor could be used. The first reason for using silicon for thyistors is that silicon is the ideal choice because of its overall properties. It is able to handle the voltage and currents required for high power applications. Additionally it has good thermal properties. The second major reason is that silicon technology is well established and it is widely used for a variety of semiconductor devices. As a result it is very cheap and easy for semiconductor manufacturers to use for their electronic components.




Specification of  Diode Thyristor Rectifier







IRKD70-16 40mm Thyristor Controlled Rectifier

ID=25A ~ 300A, VRRM= 1600V or custom made, Tjm= 150℃, VISO≥2.5KV

The parameters in the table are the ratings and characteristics of each diode chip in module(Except for In)

Suitable for types: MDS

Three Phase Rectifier Bridges Modules

TYPE ID TC

VFM

(V)

VTM

(V)

IRRM

(mA)

Rth(j-c)

(℃/W)

Rth(c-h)

(℃/W)

Fig Circuit
(A) (℃)
MDS25 25 90 1.5 1.5 4 2.45 0.1 16,17 IRKD70-16 40mm Thyristor Controlled Rectifier
MDS35 35 90 1.4 1.5 4 1.87 0.1 16,17
MDS60 60 90 1.4 1.5 9 0.70 0.1 4,5
MDS75 75 90 1.4 1.5 9 0.70 0.1 4,5
MDS100 100 90 1.4 1.5 9 0.55 0.05 4,5
MDS150 150 90 1.4 1.5 9 0.42 0.05 6
MDS200 200 90 1.4 1.5 9 0.35 0.05 6
MDS250 250 90 1.4 1.5 14 0.29 0.05 6
MDS300 300 90 1.4 1.5 14 0.42 0.05 6



 IRKD70-16 40mm Thyristor Controlled Rectifier  IRKD70-16 40mm Thyristor Controlled Rectifier  IRKD70-16 40mm Thyristor Controlled Rectifier

TYPE:SDK30-16

VRRM:1 600V

Max Load Current:30A

Dimensions:80×29×27mm

Fixing size:68mm, Φ7mm

TYPE:SKB30-16

VRRM:1 600V

Max Load Current:30A,60A

Dimensions:71×60×31 mm

Fixing size:60mm, Φ5.9mm

TYPE:IRKD70-16

VRRM:1 600V

Max Load Current:70A

Dimensions:40×27×26mm

Fixing size:30mm, Φ4mm

 IRKD70-16 40mm Thyristor Controlled Rectifier  IRKD70-16 40mm Thyristor Controlled Rectifier  IRKD70-16 40mm Thyristor Controlled Rectifier

TYPE:SDK75-16

VRRM:1 600V

Max Load Current:75A

Dimensions:65×48×34mm

Fixing size:50mm, Φ5mm

TYPE:VU0125-16

VRRM:1 600V

Max Load Current:125A

Dimensions:67×50×31mm

Fixing size:50mm, Φ7mm

TYPE:VU0155-16

VRRM:1 600V

Max Load Current:155A,200A

Dimensions:94×53.7×30mm

Fixing size:80mm, Φ6.5mm









 IRKD70-16 40mm Thyristor Controlled Rectifier

Ir(AV)=20A ~ 800A, VDRM= 1600, 1800V or custom made, Tjm=125C, dv/dt≥500V/μs, VISO≥ 2.5KV(RMS)

The parameter in the table are the ratings and characteristics of each thyristor (diode) chip in module

Suitable for types: MTC,MT/DC,MTK,MT/DK, MTA,MTX,MT/DX

Thyristor Modules

TYPE IT(AV) TCIT(RMS) VGT IGT

IRRM

(mA)

VTM

(mA)

Rth(j-c)

(℃/W)

Rth(c-h)

(℃/W)

Fig Circuit
(A) (℃) (A)

(V)

(25℃)

(mA)

(25℃)

MTC25 25 85 40 ≤2.0 60±10 ≤10 ≤1.6 0.32 0.1 1  IRKD70-16 40mm Thyristor Controlled Rectifier
MTC40 40 85 65 ≤2.0 60±10 ≤10 ≤1.6 0.26 0.1 1
MTC55 55 85 86 ≤2.5 60±10 ≤10 ≤1.6 0.225 0.1 1
MTC70 70 85 110 ≤2.5 60±10 ≤15 ≤1.6 0.172 0.1 1
MTC90 90 85 140 ≤2.5 65±15 ≤15 ≤1.6 0.139 0.1 2
MTC110 110 85 170 ≤2.5 65±15 ≤15 ≤1.6 0.110 0.05 2
MTC130 130 85 200 ≤2.5 65±15 ≤20 ≤1.6 0.095 0.05 2
MTC160 160 85 250 ≤2.5 70±15 ≤20 ≤1.8 0.090 0.05 2
MTC200 200 85 310 ≤120 70±15 ≤20 ≤1.8 0.080 0.05 2
MTC250 250 85 390 ≤2.5 70±15 ≤20 ≤1.8 0.060 0.05 3
MTC300 300 85 470 ≤3.0 70±15 ≤20 ≤1.8 0.040 0.05 3
MTC350 350 80 550 ≤3.0 70±15 ≤30 ≤1.8 0.040 0.03 10
MTC400 400 80 630 ≤3.0 70±15 ≤30 ≤1.8 0.110 0.03 10
MTC500 500 80 785 ≤3.0 80±15 ≤30 ≤2.0 0.084 0.03 10
MTC700 700 80 1010 ≤3.0 85±15 ≤50 ≤2.0 0.076 0.03 11
MTC800 800 70 1256 ≤3.0 85±15 ≤50 ≤2.0 0.050 0.03 11



IRKD70-16 40mm Thyristor Controlled Rectifier  IRKD70-16 40mm Thyristor Controlled Rectifier  IRKD70-16 40mm Thyristor Controlled Rectifier

TYPE: SKCH50-16

VRRM:1 600V

Max Load Current:50A

Dimensions:71×60×31 mm

Fixing size:60mm, Φ5.9mm

TYPE:IRKT71-16

VRRM:1 600V

Max Load Current:71A,90A

Dimensions:92×20.5×30mm

Fixing size:80mm, Φ6.4mm

TYPE:TT90N16TOF

VRRM:1 600V

Max Load Current:90A

Dimensions:92.5×20×29 mm

Fixing size:80.7mm, Φ6mm

 IRKD70-16 40mm Thyristor Controlled Rectifier  IRKD70-16 40mm Thyristor Controlled Rectifier  IRKD70-16 40mm Thyristor Controlled Rectifier

TYPE:SKKT160-16

VRRM:1 600V

Max L oad Current:1 60A,200A

Dimensions:95×34×29mm

Fixing size:80mm, Φ5.96mm

TYPE:SKKT300-16

VRRM:1 600V

Max Load Current:300A,400A

Dimensions:115×50×53mm

Fixing size:80×38mm, Φ6mm

TYPE:SKKH400-16

VRRM:1 600V

Max Load Current:400A,500A

Dimensions:150×60×54mm

Fixing size:112×48mm, Φ6mm
